FXR40/FXB336

FXR40/FXB336
Magnifying lens Click on image to enlarge

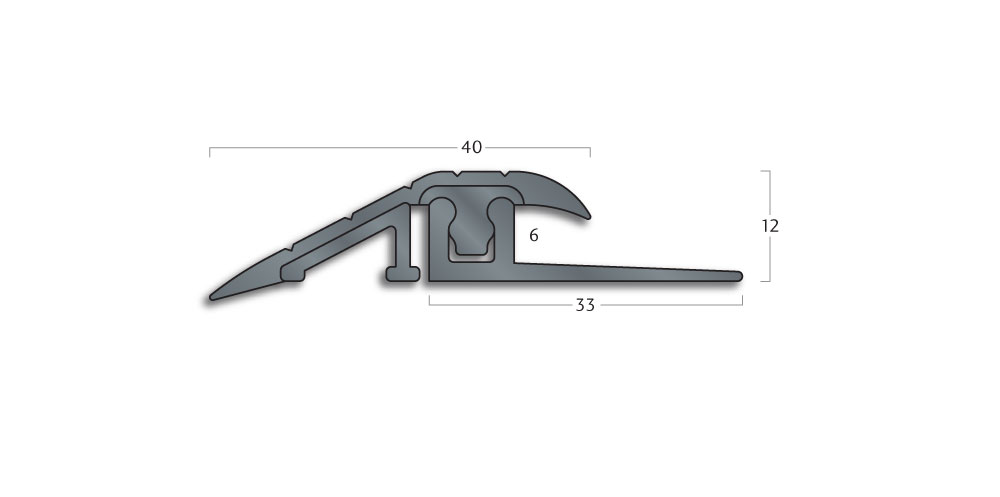

FXR40/FXB336 is a ramp top, two-piece flooring transition profile from the Clip-Top fx range.

The FXB336 PVC-u base is pre-punched for forming curves on-site without the need for heat application, reducing  the requirement for pre-fabricated curves. For straight lengths, FXR40 should be used with AFT336 aluminium base - click here for details.

FXR40/FXB336 provides a safe transition between resilient flooring and carpet/carpet tile of 6mm height (compressed thickness). When using Clip-Top fx with carpet, the compressed thickness of the carpet should always be a tight fit to the internal gauge of the combined top/base profile.

Clip-Top fx bases should always be fitted on top of the resilient flooring when used in a ramp configuration.

Clip-Top fx allows design flexibility in most commercial situations and is ideal for use in retail high street shops, schools, hotels and some offices.

UK/EU Registered Design no 9/000007067-0003

Colours

  • Black (LRV: 5)
  • Brown (LRV: 6)
  • Bluebell (LRV: 8)
  • Granite (LRV 13)
  • Fawn (LRV: 18)
  • Dove (LRV: 27)
  • Clay (LRV: 48)
Magnifying lens Click on colour to enlarge
