FXR40/AFT336

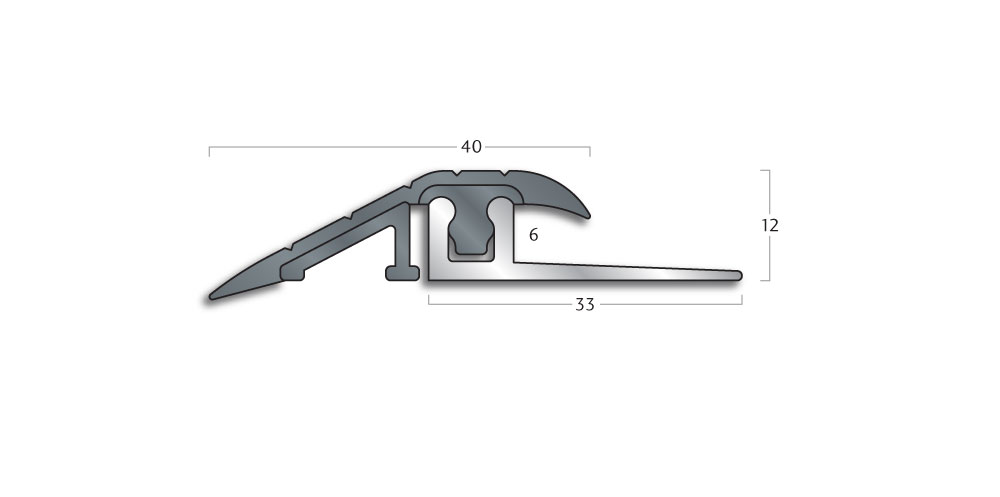

FXR40/AFT336 is a ramp top, two-piece flooring transition profile from the Clip-Top fx range.

The AFT336 aluminium base should be used for straight installations. For forming curves on-site without the need for heat application, reducing  the requirement for pre-fabricated curves, FXR40 should be used with FXB336 PVC-u pre-punched base -  click here for details.

FXR40/AFT336 provides a safe transition between resilient flooring and carpet/carpet tile of 6mm height (compressed thickness). When using Clip-Top fx with carpet, the compressed thickness of the carpet should always be a tight fit to the internal gauge of the combined top/base profile.

Clip-Top fx bases should always be fitted on top of the resilient flooring when used in a ramp configuration.

Clip-Top fx allows design flexibility in most commercial situations and is ideal for use in retail high street shops, schools, hotels and some offices.

UK/EU Registered Design no 9/000007067-0003
