Esplanade 9000 Matting

Esplanade 9000 Matting
Magnifying lens Click on image to enlarge

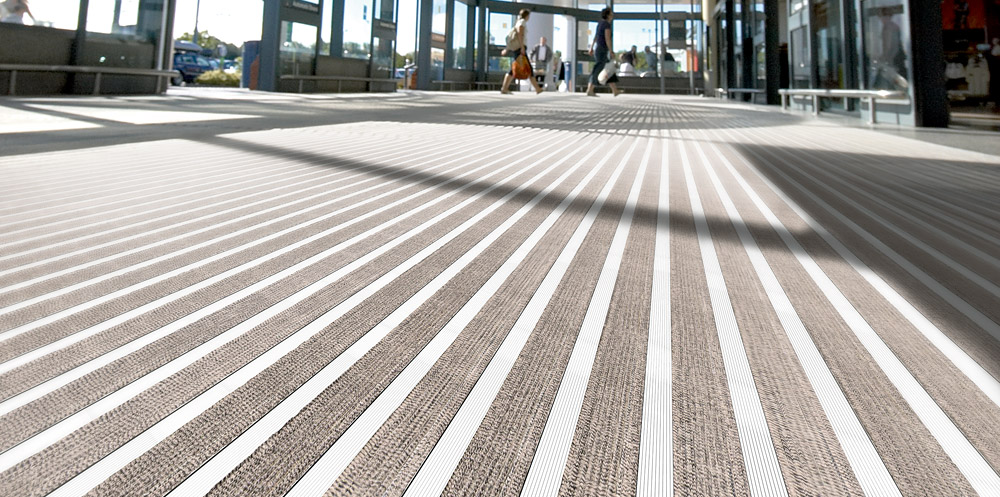

Gradus Esplanade 9000 is a primary entrance barrier mat constructed from rubber wipers and aluminium scraper linking strips which are held together with galvanised steel wires.  The rubber wipers are available either plain or interwoven with grey polyester fibres giving options for both interior and exterior applications.

Esplanade 9000 is available in 12mm and 18mm thicknesses, open or closed construction and in a single or double wiper configuration.

It is tested to withstand weights of 250kg per wheel (1000kg over 4 wheels) to a minimum of 30,000 passes. It is also tested for flammability and slip-resistance.

Esplanade 9000 can be manufactured to most shapes subject to approval of a template and comes with a 10 year warranty (subject to terms and conditions).

When installed as a true rectangle or a square Esplanade 9000 can be reversed to extend the product’s life.

For a complete matting solution Esplanade 9000 can also be used with Gradus Boulevard secondary barrier matting.

Typical applications: Airports, railway stations, supermarkets with heavy wheeled traffic.

Download the Barrier Matting Systems Brochure – Edition 5
