Esplanade 8500 Matting - 12mm Closed Construction - Single Wiper

Esplanade 8500 Matting - 12mm Closed Construction - Single Wiper
Magnifying lens Click on image to enlarge

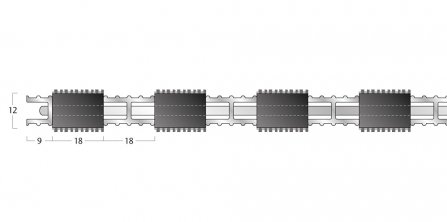

Esplanade 8500 primary entrance barrier mat is constructed from rubber wipers and aluminium scraper linking strips which are held together with galvanised steel wires.

This option of Esplanade 8500 primary barrier mat is 12mm thick and features a closed construction with single wipers which are available plain for external use (scraper action only) or interwoven with polyester fibres in a choice of Grey or Black.

The aluminium scraper linking strips are anodised for use in internal environments to help reduce glare/strobing in brightly lit areas and are available in a silver anodised finish for use with grey wipers and black or a choice of bronze finishes for use with either black or grey wipers. The scraper linking strips for use with plain wipers are mill finished aluminium.

The single wiper option offers medium dirt and moisture removal whilst the closed construction allows dirt and moisture to remain on the surface of the mat. This can be removed by regular cleaning in addition to periodic deep cleaning of the mat itself.

Esplanade 8500 when specified correctly is ideal for use in airports, railway stations, supermarkets and sports stadia. (Note: black and bronze anodised finish suitable for medium foot and wheeled traffic areas only).

Mats featuring the mill finish or silver anodised aluminium linking strips are suitable for heavy foot and wheeled traffic (tested to withstand a weight of 150kg per wheel) and are offered with a 10 year warranty.

Mats featuring the black or bronze anodised finish are suitable for medium foot and wheeled traffic (tested to withstand a weight of 100kg per wheel) and are offered with a 7 year warranty.

Tests are completed to a minimum of 30,000 passes and warranties are subject to terms and conditions.

Esplanade 8500 has been tested for flammability (BSEN 13501-1 Class Cfl-s2) and slip-resistance (HSL ramp test - low risk of slip).

When installed as a true rectangle or square, Esplanade 8500 can be reversed to extend the life of the mat. It can also be manufactured to most shapes on approval of a template.

    Information

    Request a call back click here

    Colours

    • Grey Polyester Wipers - Interior Use
    • Black Polyester Wipers - Interior Use
    • Plain Wipers - Exterior Use
    • Mill Finish Aluminium Linking Strips
    • Silver Anodised Aluminium Linking Strips
    • Black Anodised Aluminium Linking Strip
    • Light Bronze Anodised Aluminium Linking Strip
    • Mid Bronze Anodised Aluminium Linking Strip
    • Dark Bronze Anodised Aluminium Linking Strip
    Magnifying lens Click on colour to enlarge
    Add to My Design Board / Order Samples
