Esplanade 8500 Matting

Esplanade 8500 Matting
Magnifying lens Click on image to enlarge

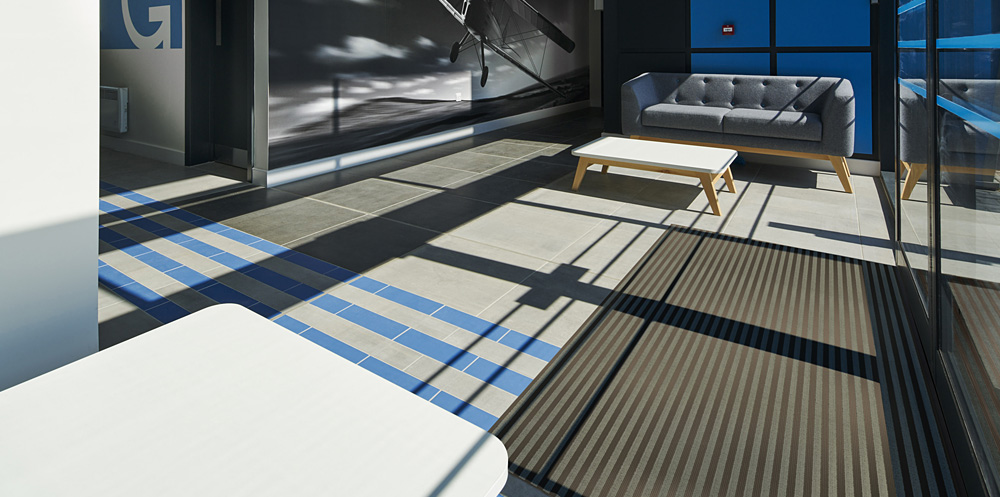

Gradus Esplanade 8500 is a primary entrance barrier mat constructed from rubber wipers and aluminium scraper linking strips which are held together with galvanised steel wires.

The rubber wipers are available either plain or interwoven with polyester fibres in a choice of Grey or Black giving options for both interior and exterior environments.

The aluminium scraper linking strips are anodised for use in internal environments to help reduce glare/strobing in brightly lit areas and are available in a silver anodised finish for use with grey wipers and black or a choice of bronze finishes for use with either black or grey wipers. The scraper linking strips for use with plain wipers are mill finished aluminium.

Esplanade 8500 is available in 12mm and 18mm thicknesses, open and closed construction and in a single or double wiper configuration.

It is tested to withstand weights of up to 150kg per wheel (dependent on finish) to a miniumum of 30,000 passes. It is also tested for flammability and slip-resistance.

Esplanade 8500 can be manufactured to most shapes subject to approval of a template and has a warranty of up to 10 years (dependent on finish and subject to terms & conditions).

When installed as a true rectangle or a square Esplanade 8500 can be reversed to extend the product’s life.

For a complete matting solution Esplanade 8500 can also be used with Boulevard secondary barrier matting.

Typical applications: Airports, railway stations, supermarkets & sports stadiums.  Note – Black and bronze anodised finish medium foot and wheeled traffic areas only.

For further information on Esplanade 8500 download the Barrier Matting Systems Brochure – Edition 2
