CLS16/LBS45
Click on image to enlarge

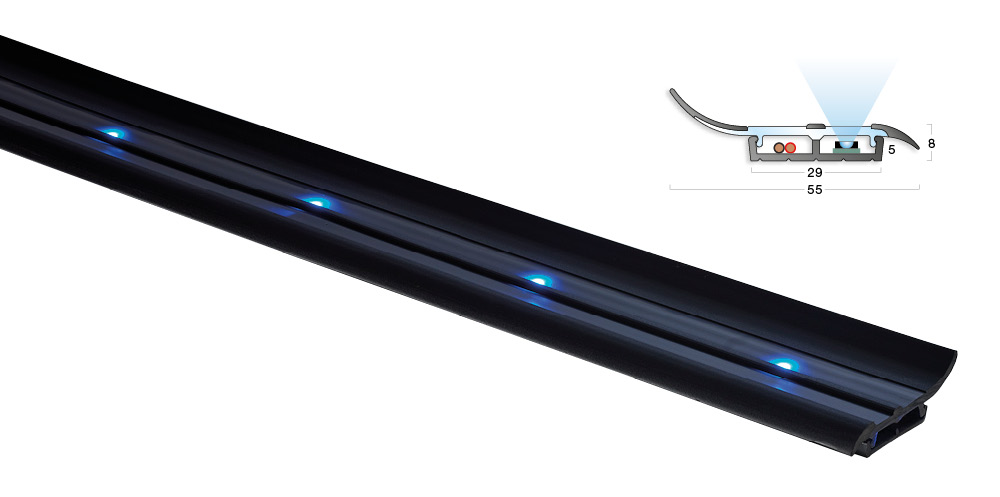

CLS16/LBS45 is a two-piece PVC-u flooring profile designed to provide cable management for Gradus LED Step Lighting, or to house Gradus Interlok Advance or Floor Loom lighting systems for walkway and aisle illumination.
All compatable lighting systems listed above are available in a choice of 6 LED colours - Red, Green, Blue, Amber, Warm White & White.
It has a 5mm gauge in order to accommodate thinner gauge carpets. In addition, the carpet to wall design helps to prevent dirt and debris from collecting around the edges of the auditoria.
The base is fitted to the floor first to house the cabling, then the top is clipped into place. The top is co-extruded with a clear or smoked window so that light can shine through when used as an illuminated floor system.
When fitted, the compressed thickness of the carpet should always be a tight fit to the internal gauge of the combined top/base profile.
If you have a project that could benefit from LED Lighting, please call 01625 428922 to discuss with a member of our team.
