ATR50/PBT16

ATR50/PBT16
Magnifying lens Click on image to enlarge

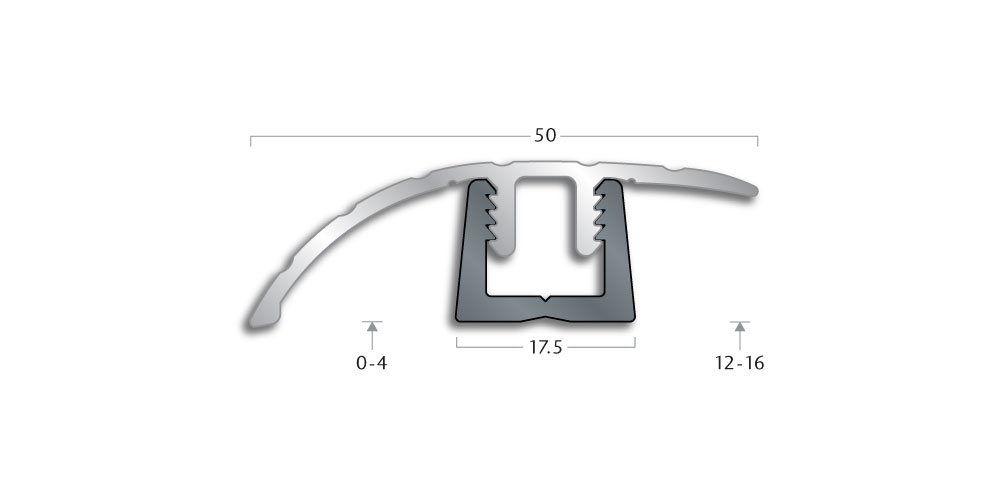

ATR50/PBT16 is a two-piece, ramp top profile suitable for joining floorcoverings of different heights. The profile protects the edge of wood & wood laminate flooring, ceramic tile and carpet (of between 12mm & 16mm thickness) and provides a safe transition to adjacent lower surfaces.

ATR50/PBT16 is ideal for interior use in medium pedestrian traffic applications e.g. offices and restaurants.

The profile is available in two anodised modern finishes: Polished Silver & Etched Silver.

Tops & bases are supplied separately in lengths of 2700mm.

When installed with ceramics, wood or wood laminate flooring a suitable gap must be left between the profile base and the flooring to allow for natural expansion. When used with carpet, the compressed thickness of the carpet should always be a tight fit to the internal gauge of the combined top/base profile.

Colours

  • Polished Silver
  • Etched Silver
Magnifying lens Click on colour to enlarge
