SSHR42 Handrail
Click on image to enlarge
Gradus SSHR42 stainless steel handrail is designed to offer pedestrian guidance and support, in addition to a degree of surface protection against damage caused by wheeled traffic.

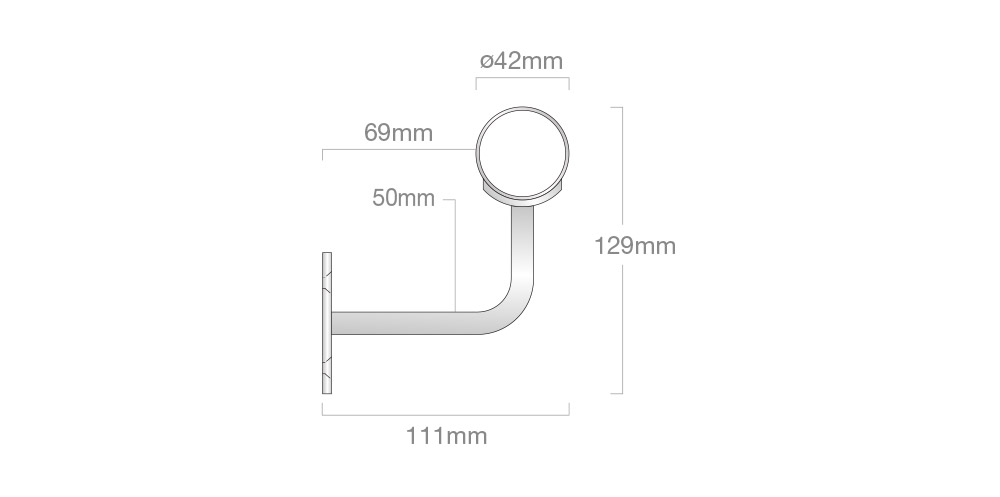

SSHR42 handrail has been designed to meet the guidelines in BS 8300-2:2018 and Approved Document M (ADM) of The Building Regulations 2010, with a circular grip diameter of 42mm, bracket clearance of 50mm and a distance from the wall of 69mm.
Available with matching stainless-steel accessories, the premium finish makes the handrail ideal for use in hotels, hospitals, nursing/care homes and offices. The hygienic nature of the handrail also makes it ideal for use in environments such as food and pharmaceutical preparation and manufacture.
Can be curved – contact Gradus Technical Services for radii information.
This profile is also available in timber.
Information
- Full supply and fit service click here
- BIM Objects click here
Request a call back click here
Colours
Click on colour to enlarge
