SSCG5090 Stainless Steel Corner Guard
Click on image to enlarge
The Gradus SSCG5090 corner guard is a one-piece, surface mount corner guard that provides hygienic, durable protection for interior applications such as kitchens, canteens and laboratories.

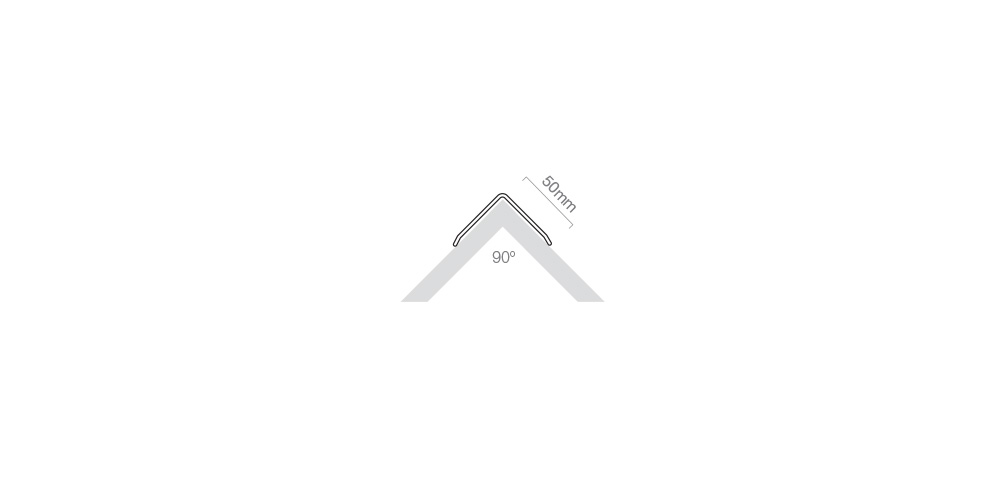

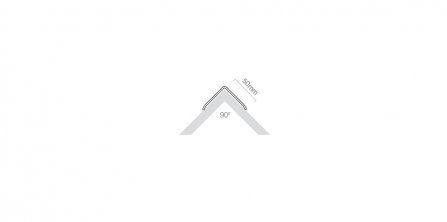

It is produced from 304 Grade Stainless Steel and is supplied in a Satin finish to minimise the appearance of impact and abrasion. It features a 50mm wing and a 90° angle and is available in 2 height options.
The SSCG5090 corner guard can be supplied pre-drilled for mechanical fixing (SSCG5090D) or un-drilled for fixing with a suitable adhesive (SSCG5090U).
The corner guards are drilled for No 6 countersunk woodscrews. The holes are 15mm from the top and bottom edge and 15mm in from the sides, 4 holes per corner guard.
