API I Beam End Post with Handrail Extension

API I Beam End Post with Handrail Extension
Magnifying lens Click on image to enlarge

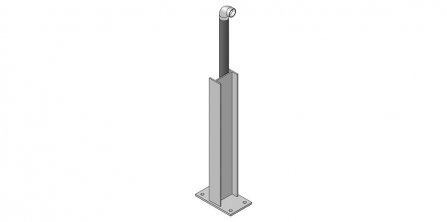

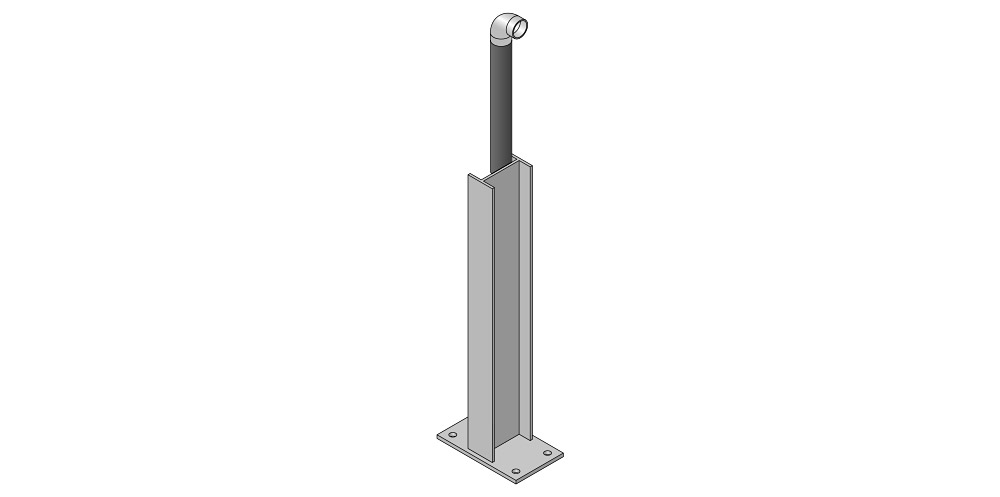

The Gradus API I Beam end posts with handrail extension are designed for use with the AR3 safety barrier rail to provide a floor mounted fixing to support both the barrier rail and handrail.

The posts comprise a galvanised steel I Beam post with a pre-assembled black sleeved handrail extension with an elbow for fixing and terminating the handrail.

Posts can be installed at varying centres depending on low or high impact areas (guidelines are 3.2m centres for low impact and 1.6m for high impact).

Fixings required per post: 4 substrate fixings (FXG-TB16-150G) and 1 rail fixing (FXG-BS16-50G)
