API-760D and API-1100D I Beam Posts – Double Rail

API-760D and API-1100D I Beam Posts – Double Rail
Magnifying lens Click on image to enlarge

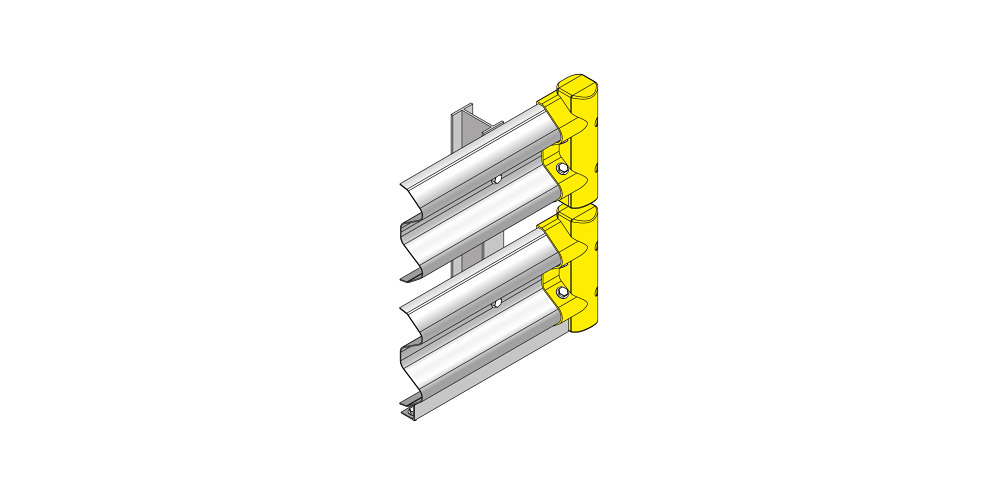

Gradus API I Beam bolt down, floor mounted posts are designed for use with the AR3 safety barrier rail in a double rail configuration.

Posts are available in 2 heights (760mm and 1100mm) and can be installed at varying centres depending on low or high impact areas (guidelines are 3.2m centres for low impact and 1.6m for high impact).

Fixings required per post: 4 substrate fixings (FXG-TB16-150G) and 2 rail fixings (FXG-BS16-50G)

A fork stopper containment angle (ACA-3000G) is available as an optional extra where the rail is mounted at low level to the floor. The angle sits below the low level rail for a flush finish to the floor and is designed to prevent the penetration of forks from pallet trucks and forklifts. The angle is 50mm x 50mm x 3500mm and requires 4 fixings (FXG-B12-100G) per length.

Add to My Design Board / Order Samples
