API-560, API-610, API-760 I Beam Posts – Single Rail

API-560, API-610, API-760 I Beam Posts – Single Rail
Magnifying lens Click on image to enlarge

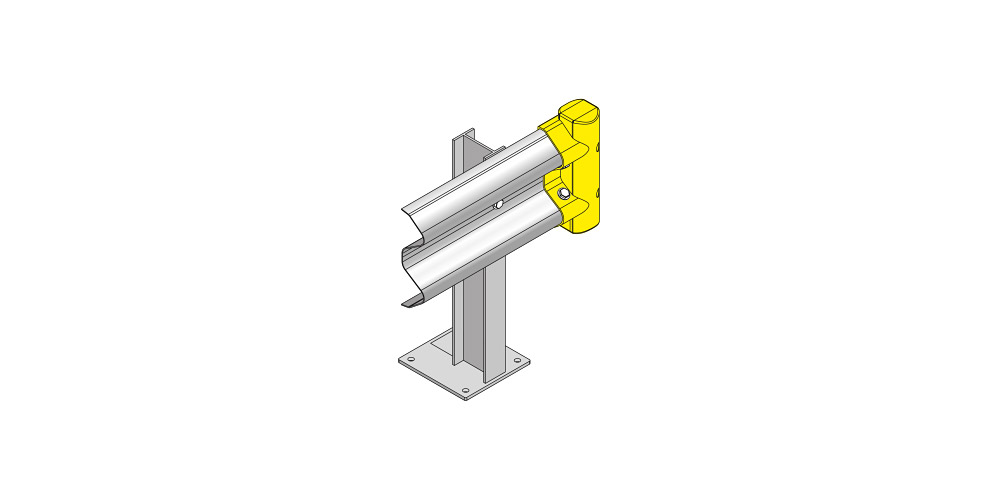

Gradus API I Beam bolt down, floor mounted posts are designed for use with the AR3 safety barrier in a single rail configuration.

Posts are available in 3 heights (560mm, 610mm and 760mm) to allow the rail to be fixed at the predicted point of potential impact and to suit the anticipated vehicle traffic.

Posts can be installed at varying centres depending on low or high impact areas (guidelines are 3.2m centres for low impact and 1.6m for high impact).

Fixings required per post: 4 substrate fixings (FXG-TB16-150G) and 1 rail fixing (FXG-BS16-50G)

Add to My Design Board / Order Samples
