ADM5

Click on image to enlarge

‹

›

ADM5 stair edging (nosing) comprises an aluminium channel with a choice of insert material. It can be used in conjunction with floorcoverings from all major manufacturers and is suitable for all commercial and most industrial applications.

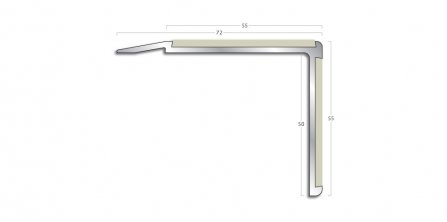

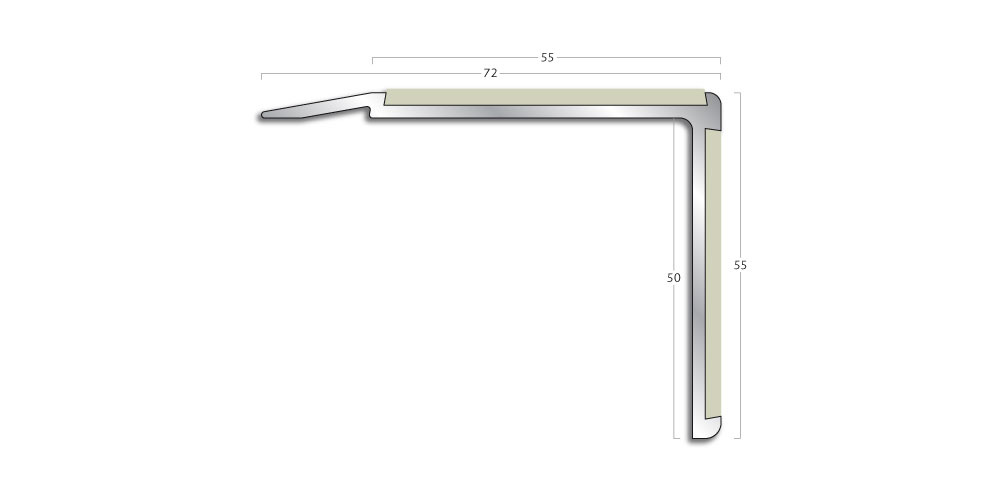

This square, single channel, ramp back profile features a 72mm tread and 55mm riser to meet the guidance in Approved Document M and BS 8300-2:2018. It is ideal for use where there are no surface floorcoverings or with resilient flooring. When used with resilient flooring ADM5 should be installed on top of the floorcovering.

ADM5 also features an insert on the riser in order that a single solid band of colour can be achieved in line with the guidance in ADM. Both inserts should be of contrasting colour to the surrounding floor finish. See insert availability for insert colour options and LRV (Light Reflectance Value) information.

Supplied in mill finish aluminium as standard. Anodised, polished or chromed options also available upon request.
