SSCG7590 Stainless Steel Corner Guard
Click on image to enlarge
The Gradus SSCG7590 corner guard is a one-piece, surface mount corner guard that provides hygienic, durable protection for interior applications such as kitchens, canteens and laboratories.

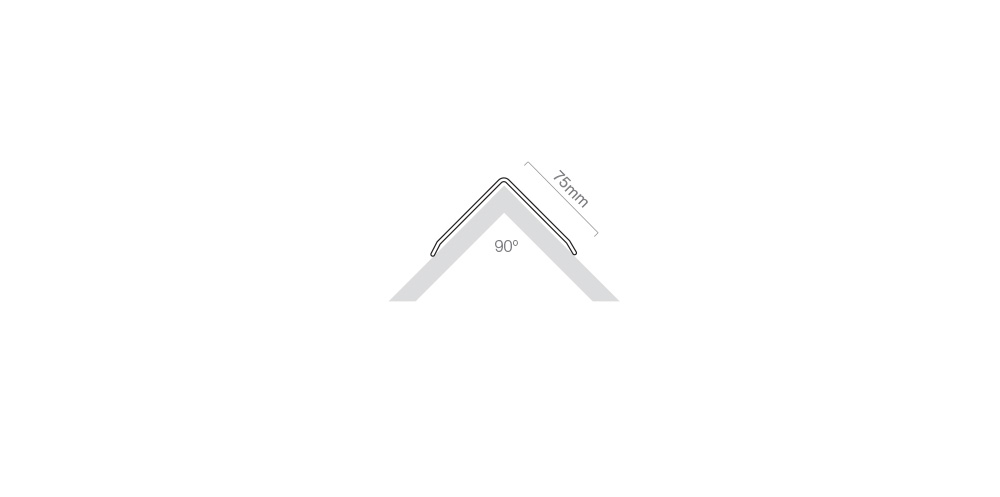

It is produced from 304 Grade Stainless Steel and is supplied in a Satin finish to minimise the appearance of impact and abrasion. It features a 75mm wing and a 90° angle and is available in 2 height options.
The SSCG7590 corner guard can be supplied pre-drilled for mechanical fixing (SSCG7590D) or un-drilled for fixing with a suitable adhesive (SSCG7590U).
The corner guards are drilled for No 6 countersunk woodscrews. The holes are 15mm from the top and bottom edge and 15mm in from the sides, 4 holes per corner guard.
Information
- Full supply and fit service click here
- BIM Objects click here
Request a call back click here
Colours
Click on colour to enlarge
