ATD71L

ATD71L
Magnifying lens Click on image to enlarge

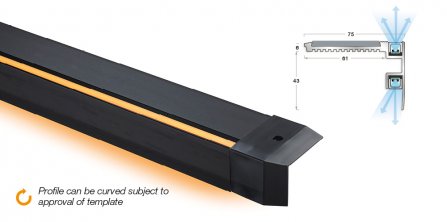

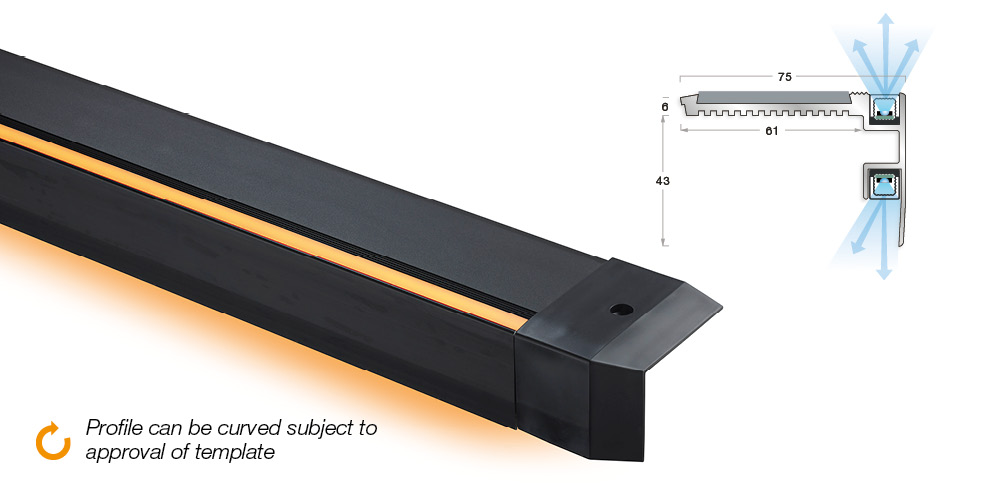

Gradus ATD71L Aluminium Step Lighting Profile can house either the Gradus Impression, Continuity or Interlok Advance LED lighting systems.

It comprises a hardwearing, aluminium channel with a 6mm gauge ideal for use with wood, carpet and resilient flooring. ATD71L provides top and downward facing illumination for clear step edge definition in darkened conditions.

It also offers the option of only featuring lighting either in the top of the profile or just as downward illumination by using a blank tube in the lighting channel that is not required. This can be achieved by installing the solid black section of the blank LR1238 tube within the visible face of the channel to provide a neat finish where lighting is not required.
Note – Gradus Continuity lighting system suitable for use in ATD71L up light only.

Slip-resistant pvc inserts are available in either Interior Standard Finish, Interior Grained Finish, Xtra-grip and Xtra-grip Plus. For insert colour availability refer to the Gradus LED Lighting Systems catalogue.

ATD71L features an aluminium mill finish as standard. Black or gold anodised finishes also available upon request.

End caps (ECF71L) can be supplied for neat finishing and cable hiding.

Curving LogoProfile can be curved subject to approval of template - contact Gradus Technical Services for further information.

If you have a project that could benefit from LED Lighting, please call 01625 428922 to discuss with a member of our team.
