ELAR530

ELAR530
Magnifying lens Click on image to enlarge

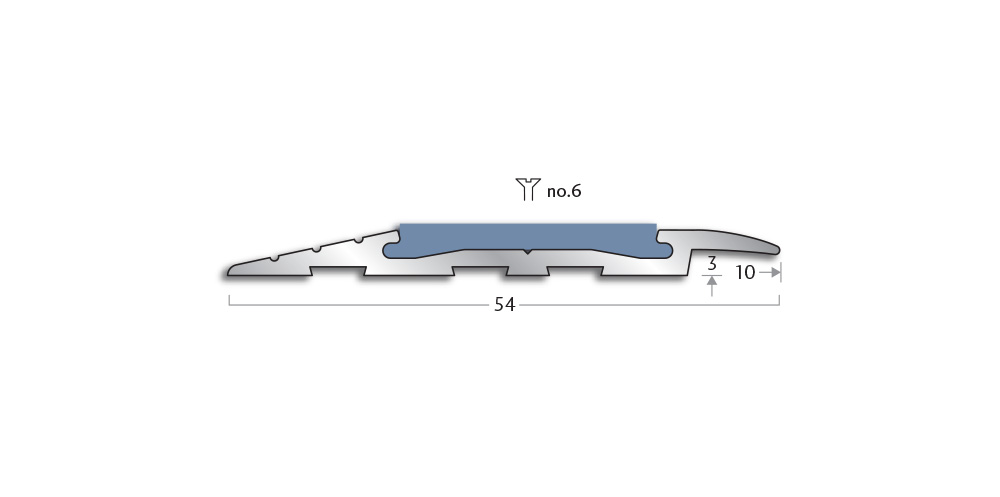

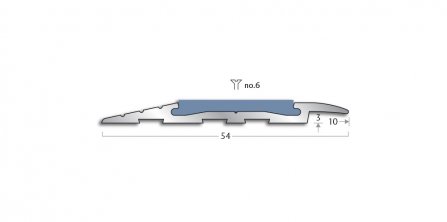

ELAR530 is a ramp profile from the Trans-Edge range of heavy-duty flooring profiles.

Trans-Edge profiles are designed for use in the most demanding environments where frequent heavy foot and trolley traffic can be expected.

ELAR530 is manufactured using high quality alumiunium to withstand repeated heavy traffic impacts. It provides a neat transition between thin gauge carpet or resilient floorcoverings and terrazzo/stone.(Note: when using carpet, the compressed carpet thickness should match the profile gauge).

ELAR530 incorporates a slip-resistant pvc insert available in two options: Interior insert for interior dry conditions. Available in 5 colours - Snowdrift, Coffee, Lead, Jet & Steel;  Xtra-grip insert for interior environments that are at risk of becoming contaminated with moisture, thus increasing the risk of slip. Available in 4 colours - Ochre, Onyx, Quarry and Graphite.

The insert is fitted on-site once the aluminium base has been fitted, therefore offering a concealed fixing.

Base profile and insert are supplied separately. Code ELINS30 & ELINSXG30 should be used for the insert.

Colours

  • Jet (LRV: 4.56)
  • Coffee (LRV: 6.05)
  • Lead (LRV: 12.77)
  • Steel (LRV: 26.99)
  • Snowdrift (LRV: 83.77)
  • Onyx (LRV: 4.52)
  • Graphite (LRV: 12.56)
  • Quarry (LRV: 24.71)
  • Ochre (LRV: 49.97)
Magnifying lens Click on colour to enlarge
