ELAR1550

ELAR1550
Magnifying lens Click on image to enlarge

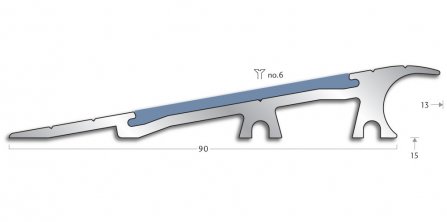

ELAR1550 is a ramp profile from the Trans-Edge range of heavy-duty flooring profiles.

Trans-Edge profiles are designed for use in the most demanding environments where frequent heavy foot and trolley traffic can be expected.

ELAR1550 is manufactured using high quality alumiunium to withstand repeated heavy traffic impacts. It provides a safe transition between wood or ceramic tile (of 15mm thickness) and resilient floorcoverings or terrazzo/stone.(Note: if using with carpet, the compressed carpet thickness should match the profile gauge).

ELAR1550 incorporates a slip-resistant pvc insert available in two options: standard insert for interior dry conditions, available in 16 colours; and Xtra-grip insert for interior environments that are at risk of becoming contaminated with moisture, thus increasing the risk of slip. Xtra-grip is available in 4 colours - Ochre, Onyx, Quarry and Graphite.

The insert is fitted on-site once the aluminium base has been fitted, therefore offering a concealed fixing.

Base profile and insert are supplied separately. Code ELINS50 & ELINSXG50 should be used for the insert.

Colours

  • Jet (LRV: 4.56)
  • Ink (LRV: 4.96)
  • Burgundy (LRV: 5.70)
  • Coffee (LRV: 6.05)
  • Midnight (LRV: 6.56)
  • Evergreen (LRV: 6.69)
  • Ocean (LRV: 8.00)
  • Poppy (LRV: 10.39)
  • Lead (LRV: 12.77)
  • Steel (LRV: 26.99)
  • Cloud (LRV: 28.57)
  • Linen (LRV: 38.59)
  • Glacier (LRV: 42.09)
  • Canvas (LRV: 53.27)
  • Buttercup (LRV: 55.54)
  • Snowdrift (LRV: 83.77)
  • Onyx (LRV: 4.52)
  • Graphite (LRV: 12.56)
  • Quarry (LRV: 24.71)
  • Ochre (LRV: 49.97)
Magnifying lens Click on colour to enlarge
