Esplanade 9000 Matting - 12mm Open Construction - Single Wiper

Esplanade 9000 Matting - 12mm Open Construction - Single Wiper
Magnifying lens Click on image to enlarge



Gradus Esplanade 9000 primary entrance barrier mat is constructed from rubber wipers and aluminium scraper linking strips held together with galvanised steel wires.

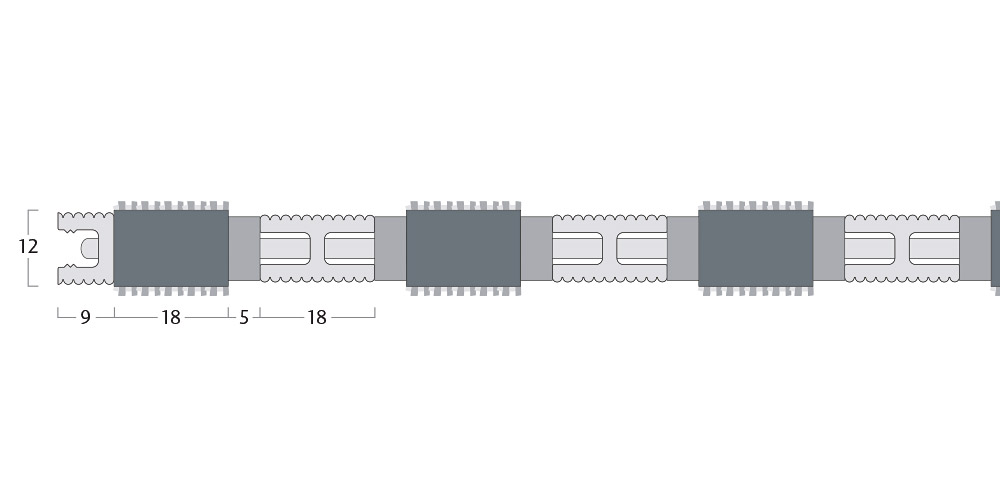

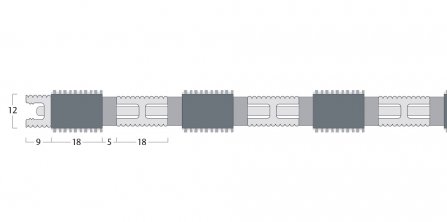

This option of Esplanade 9000 is 12mm thick and features an open construction with single wipers which are available either plain or interwoven with grey polyester fibres. The grey wipers are for interior use only whilst the plain wipers are for use in exterior applications (scraper action only).

The single wiper option offers medium dirt and moisture removal whilst the open construction incorporates spaces allowing dirt and moisture to fall through in to the matwell below. The mat can be lifted intermittently to remove the debris as well as for deep cleaning the mat itself.

Esplanade 9000 is ideal for use in applications subject to heavy foot and severe wheeled traffic such as airports, railway stations and supermarkets. It has been independently tested to withstand a weight of 250kg per wheel (1000kg over 4 wheels) to a minimum of 30,000 passes. It has also been tested for flammability (BSEN 13501-1 Class Cfl-s2) and slip resistance (HSL ramp test - low risk of slip).

When installed as a true rectangle or square, Esplanade 9000 can be reversed to extend the life of the product. It can also be manufactured to most shapes on approval of a template.

Esplanade 9000 has a 10 year manufacturing and materials defects warranty (subject to terms and conditions - contact Gradus for further details) and is available on the Gradus 5 day matting manufacturing service.

Colours

  • Mill Finish Aluminium Linking Strips
  • Grey Polyester Wipers - Interior Use
  • Plain Wipers - Exterior Use
